Flywoo Firefly 1S Nano Baby Quad 40mm 完全レビュー！②【機体整備＆FC設定編】

2021年09月16日

海外通販 Banggood 新製品レビュー Toothpick Flywoo 改造 FCセッティング U100g

この機体、FPV界隈では只今人気爆発中の様で皆さんが一斉にレビューされていらっしゃる💦

そんな中でﾜﾀｸｼがレビューするのもｱﾚなので、タイミングをずらしながらノンビリとやって行こうかな～なんて考えていたのですが、折角の最新機種レビューなのですからあまり旬の時期から外れるのも勿体無いと思い、ﾜﾀｸｼも少しずつでは御座いますが進めて参りたいと思います😗

20g Ultralight Flywoo Firefly 1S Nano Baby Quad 40mm FPV Racing Drone BNF w/ GOKU Versatile F4 5In1 1S AIO Flight Controller 250mW VTX 1200TVL Camera

・『Flywoo Firefly 1S Nano Baby Quad 40mm 完全レビュー！①【Unbox編】』

◇ この記事の目次 ◇

・バッテリー端子GNB27換装＆ブザー追加＆軽い整備
 ・工場出荷時のストック設定
 ・主なFC設定等
 ・ESCファーム
 ・受信機の調整＆RSSI調整
 ・設定後のdiff all
・最後に

バッテリー端子GNB27換装＆ブザー追加＆軽い整備

前回機体をバラしたままでしたので、今回はブザーの追加からサクサク進めます💨

…とまぁブザーパッドに配線をハンダ付け。

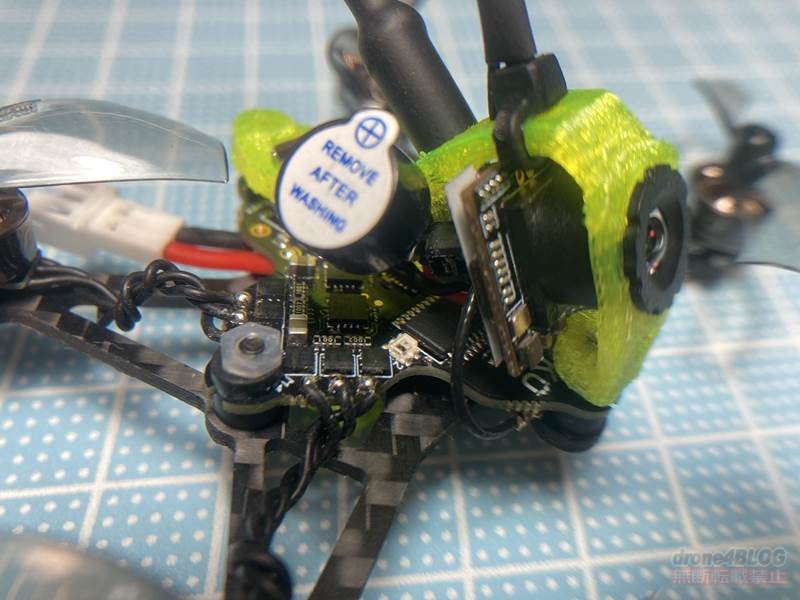

ブザーの固定位置。

キャノピー内部の補強部？に結束バンドで固定。

外から見るとこんな感じ。

キャノピーへガッチリ固定でも良かったんだけど分解メンテナンス時に邪魔になるのでこの位置。

受信機アンテナも長過ぎて邪魔なのでキャノピー脳天に結束バンドで支柱を作りシュリンクチューブで固定。

ﾁｮﾝﾏｹﾞ

後ろから。

アンテナ位置としてはこれ以上無い理想的な配置だけど、他の方のレビューを聞くとどうやらこの機体の受信感度はそうでも無いみたい😥

一応この状態での体重。

ﾁｮｲ増しね。

で、ここ迄整備してから不満な点がいくつか。

手持ちの300mAhバッテリーをデフォルトマウントで固定しようとしたらｽｯｶｽｶで固定出来ない。

650mAhなんて固定どころか入れる事も出来ない。

使えるバッテリーが限られちゃうなぁ。

Emax300mAhなら…

Flywoo Firefly 1S Nano Baby Quad Emax300mAh

ピッタリ入るけどバッテリー端子も違うし汎用性も皆無。っつーワケで、このバッテリーマウント方法も後で変更します。

先ずはバッテリー端子交換。

Flywoo Firefly 1S Nano Baby Quad PH2.0/GNB27

ﾜﾀｸｼの他の1S機でも使っているGNB27端子へ変更します。

ササッとハンダ付け。

Flywoo Firefly 1S Nano Baby Quad GNB27換装後

取り回しがし易い様、元の配線と比べ少し長めの配線にしました。

バッテリーマウント部もTPU製のパーツを外し、左右のFC固定ネジに輪ゴムを一つずつ設置。

Flywoo Firefly 1S Nano Baby Quad バッテリーマウントゴム

元はバッテリー縦置きですが、地面直撃のダメージ軽減の為横置き配置に変更。滑り止めのシリコンテープも貼り付け。

上から見るとこんな感じ。

Flywoo Firefly 1S Nano Baby Quad マウントゴム上から

このバッテリーマウント輪ゴム配置、ﾜﾀｸｼはUZ65やMobula6等の65mmWhoop機とUZ80にも採用してます。バッテリーガードを搭載出来ない小型機の場合にオススメ👍

Emax300mAhバッテリーを装着してみました。

Flywoo Firefly 1S Nano Baby Quad Emax300mAh ゴム装着

予想通りのイイ感じ。

細いタイプの1S300mAhも。

Flywoo Firefly 1S Nano Baby Quad 300mAhバッテリー

輪ゴムマウント+横置き搭載にしたお陰でバッテリーサイズを気にする事無く使える様になりました🙌

コレで一先ず機体は完成🎉

見るからにバランス良さそう👀

▶目次にもどる

工場出荷時のストック設定

続いてFCのセッティングに進みます。
ストックでインストールされていたのは『Betaflight / STM32F411 (S411) 4.2.0』。でも実はTarget：FLYWOOF411FRというカスタムファームが適用されておりました。このターゲットはファームフラッシャーに用意されていないので、アップデートする場合は自分でリソースを書き換える必要があります。

今回、ﾜﾀｸｼは面倒だった（他にもっと大事なやる事がある😤）ので、ファームのアップデートは行わずBF4.2.0のまま設定を進めます。

一応コチラにストックのdump all置いておきますね。

▼ Defaultのdump allはコチラ ▼
